VSI Crushers
Vertical Shaft
Impact Crushing.
Four VSI models, one standard. Engineered for autogenous liberation, low cost-per-tonne and predictable wear life on the world's most abrasive ores.
Overview
Fit for purpose.
The Orecrusher VSI was born out of necessity. Faced with the harsh, abrasive realities of African mining conditions, we engineered a crusher built to thrive where others fail. It reduces a wide range of materials and minerals to a consistent, uniform final product, and it does so under punishing duty.
Robust, durable and built to the highest standards using the latest technology, the Orecrusher VSI delivers unrivalled performance shift after shift.
Benefits
Benefits of VSI crushing.
Achieve increased liberation from a marginal ore body, ideal for materials such as diamonds and chrome.
Easily adjust between differential and preferential crushing.
Increase capacity through your existing grinding mills.
Reduce downtime through simplified maintenance.
Handle a large range of feed sizes of graded material.
High through-the-rotor tonnages, eliminating the need for cascade.
Alter product grading simply by varying the speed of the rotor.
Produce a more cubical and uniform finished product than a cone crusher.
How It Works
Rock-on-rock crushing, explained.
The Orecrusher VSI uses a centrally fed rotor that accelerates material at high velocity into the crushing chamber. Inside, the chamber fills with rock rebounding in every direction, forcing the material to break itself apart. Crushed product escapes through the discharge chute below, while a constant flow of new material from the rotor feeds back into the violent, suspended mass. The result is a consistent, well graded and cubically shaped product.
Factors that influence reduction
- Feed size
- Type of ore
- Grading of material
- Feed rate (tons per hour)
- Selected rotor
- Rotor speed
- Crushing chamber size
- Selected power
The Range
Four models. One standard.
OM25
10-45 TPH
OM50
30-80 TPH
OM80
50-250 TPH
OM100
200-450 TPH
For detailed technical specification documents, speak to one of our technical specialists.
Enquire Now

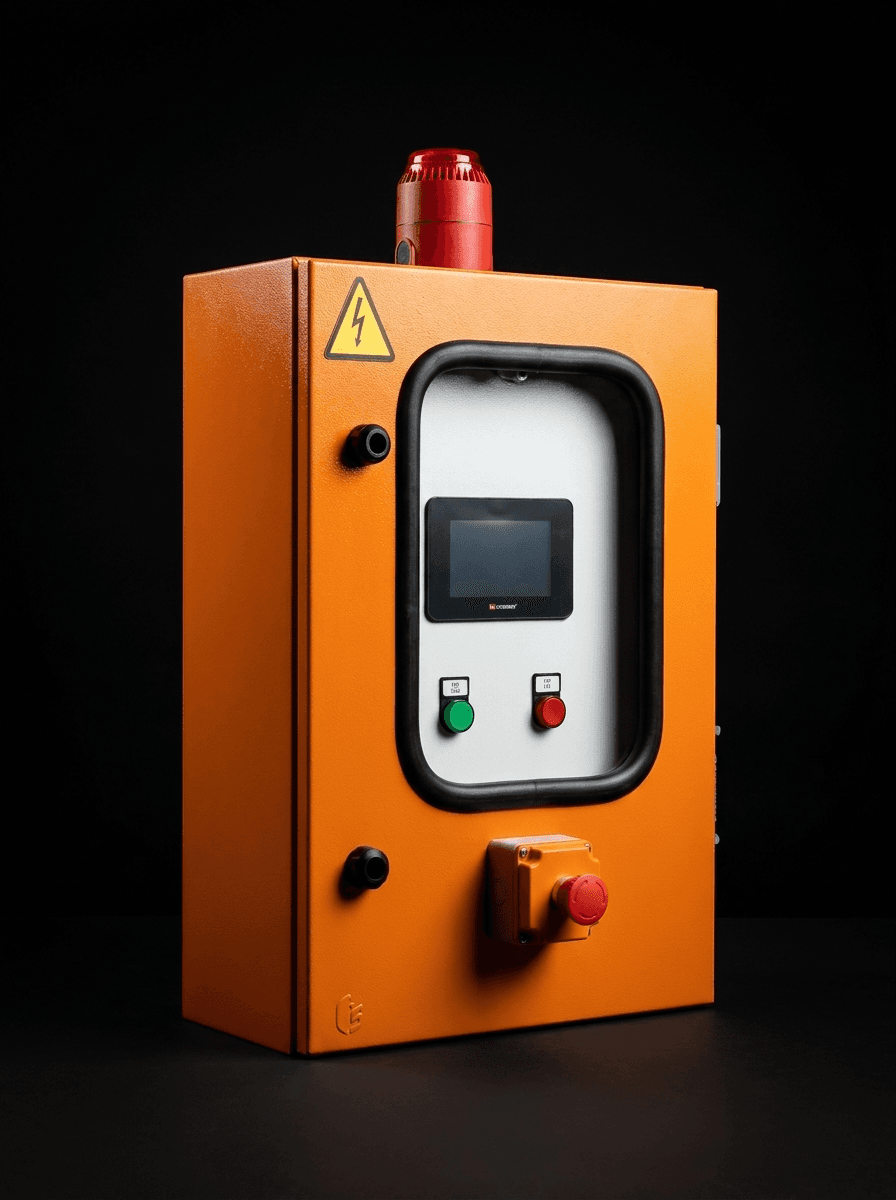

VSI Safety Panel.
Each Orecrusher Vertical Shaft Impactor includes a Control Panel with safety features. Components are installed into an IP65 enclosure, including anti-vibration mounts.
- Complete kit for easy retrofit
- VSI inspection door sensor and key switch
- Lockable E-stop
- Vibration sensor with controller and digital display
- 380/525 to 220v transformer
- 2-in-1 siren and strobe light
- Volt and amp meter
Scope the right VSI for your site.
Share your feed size, throughput and product spec. Our engineers will match the model, rotor and wear package.
